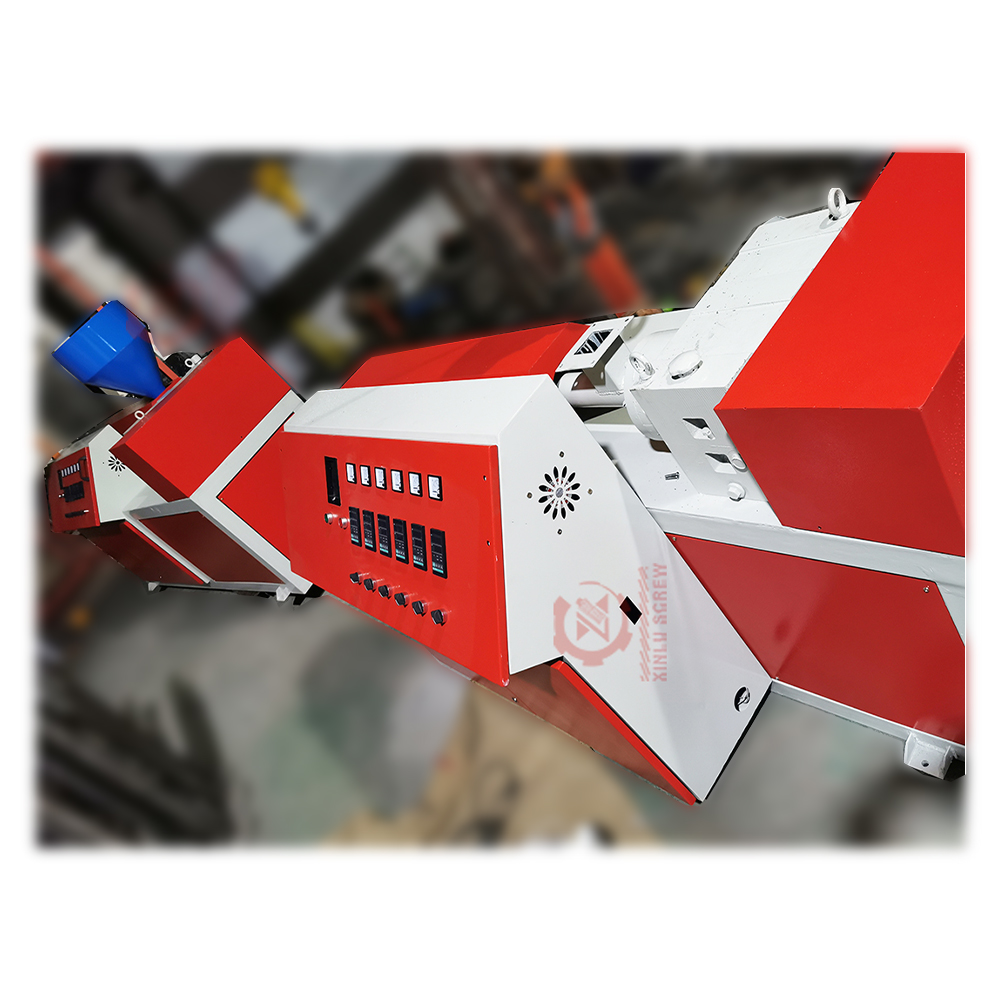

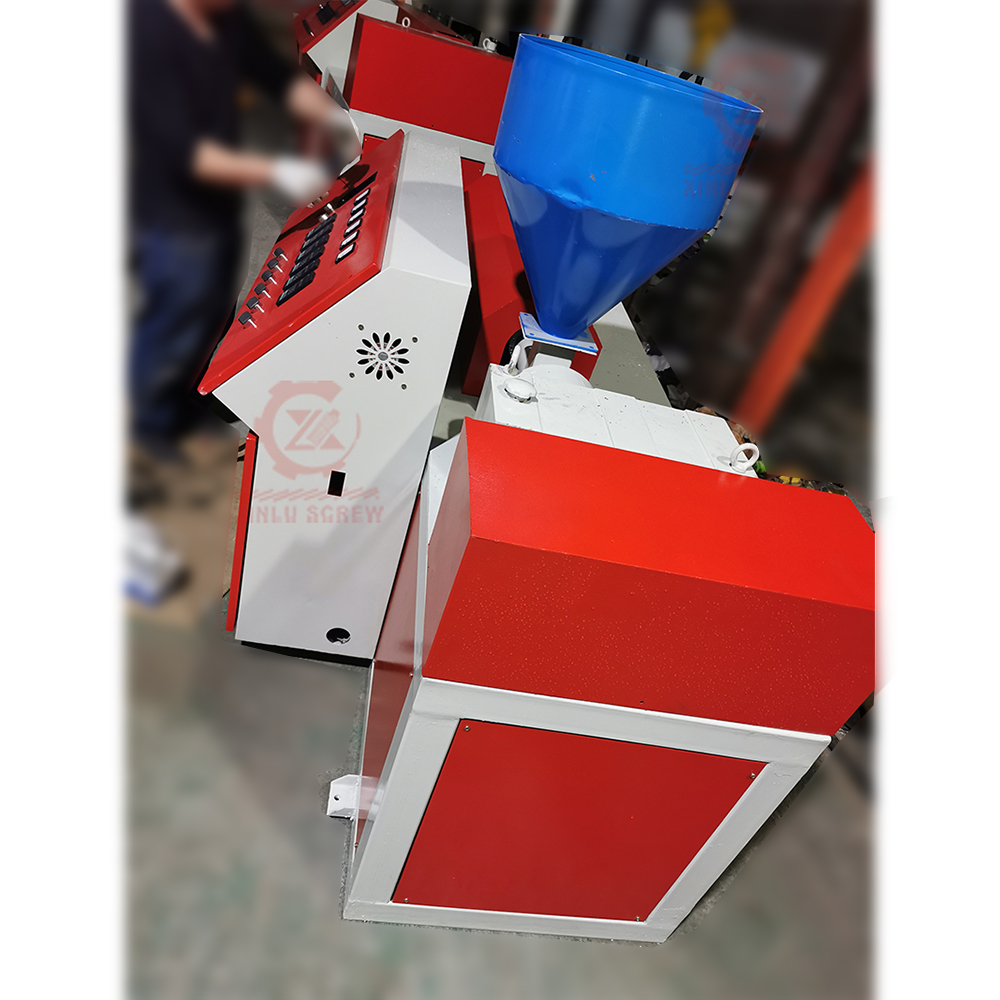

INTRODUCTION: SJSZ type series conical twin-screw extruder is a kind of special equipment suitable for extruding and molding all kinds of PVC materials. Equipped with different molds and auxiliary machines, it can produce all kinds of PVC plastic pipes, profiles, plates, sheets, rods and pellets.
model number table
| model number | SJSZ-51 | SJSZ-55 | SJSZ-65 | SJSZ-80 | SJSZ-92 |
| Screw diameter(mm) | 51/105 | 55/110 | 65/132 | 80/156 | 92/188 |
| Maximum speed (rpm) | 40 | 38 | 38 | 37 | 36 |
| Main machine power(KW) | 18.5 | 22 | 37 | 55 | 90 |
| Extrusion volume(KG/H) | 80-100 | 100-150 | 150-250 | 250-380 | 380-700 |
| Center height(mm) | 1050 | 1050 | 1050 | 1050 | 1100 |
| Net weight(KG) | 3000 | 3500 | 4000 | 5500 | 8000 |
| Size (m) | 3.6*1.1*2.1 | 3.6*1.1*2.1 | 4.2*1.5*2.4 | 4.7*1.5*2.4 | 6*1.6*2.5 |
